If you are using Rancher to manage your Harvester cluster, we recommend upgrading your Rancher server first. For more information, please refer to the Rancher upgrade guide.

For the Harvester & Rancher support matrix, please visit our website here.

Upgrading Rancher will not automatically upgrade your Harvester cluster. You still need to upgrade your Harvester cluster after upgrading Rancher.
Upgrading Rancher will not bring your Harvester cluster down. You can still access your Harvester cluster using its virtual IP.

Before starting an upgrade

Check out the available upgrade-config setting to tweak the upgrade strategies and behaviors that best suit your cluster environment.

Start an upgrade

Before you upgrade your Harvester cluster, we highly recommend:
- Back up your VMs if needed.
Do not operate the cluster during an upgrade. For example, creating new VMs, uploading new images, etc.
Make sure your hardware meets the preferred hardware requirements. This is due to there will be intermediate resources consumed by an upgrade.
Make sure each node has at least 30 GiB of free system partition space (df -h /usr/local/). If any node in the cluster has less than 30 GiB of free system partition space, the upgrade will be denied. Check free system partition space requirement for more information.
Run the pre-check script on a Harvester control-plane node. Please pick a script according to your cluster’s version: https://github.com/harvester/upgrade-helpers/tree/main/pre-check.
A number of one-off privileged pods will be created in the harvester-system and cattle-system namespaces to perform host-level upgrade operations. If pod security admission is enabled, adjust these policies to allow these pods to run.

Make sure all nodes' times are in sync. Using an NTP server to synchronize time is recommended. If an NTP server is not configured during the installation, you can manually add an NTP server on each node:

  $ sudo -i

  # Add time servers
  $ vim /etc/systemd/timesyncd.conf
  [ntp]
  NTP=0.pool.ntp.org

  # Enable and start the systemd-timesyncd
  $ timedatectl set-ntp true

  # Check status
  $ sudo timedatectl status

NICs that connect to a PCI bridge might be renamed after an upgrade. Please check the knowledge base article for further information.

Make sure to read the Warning paragraph at the top of this document first.

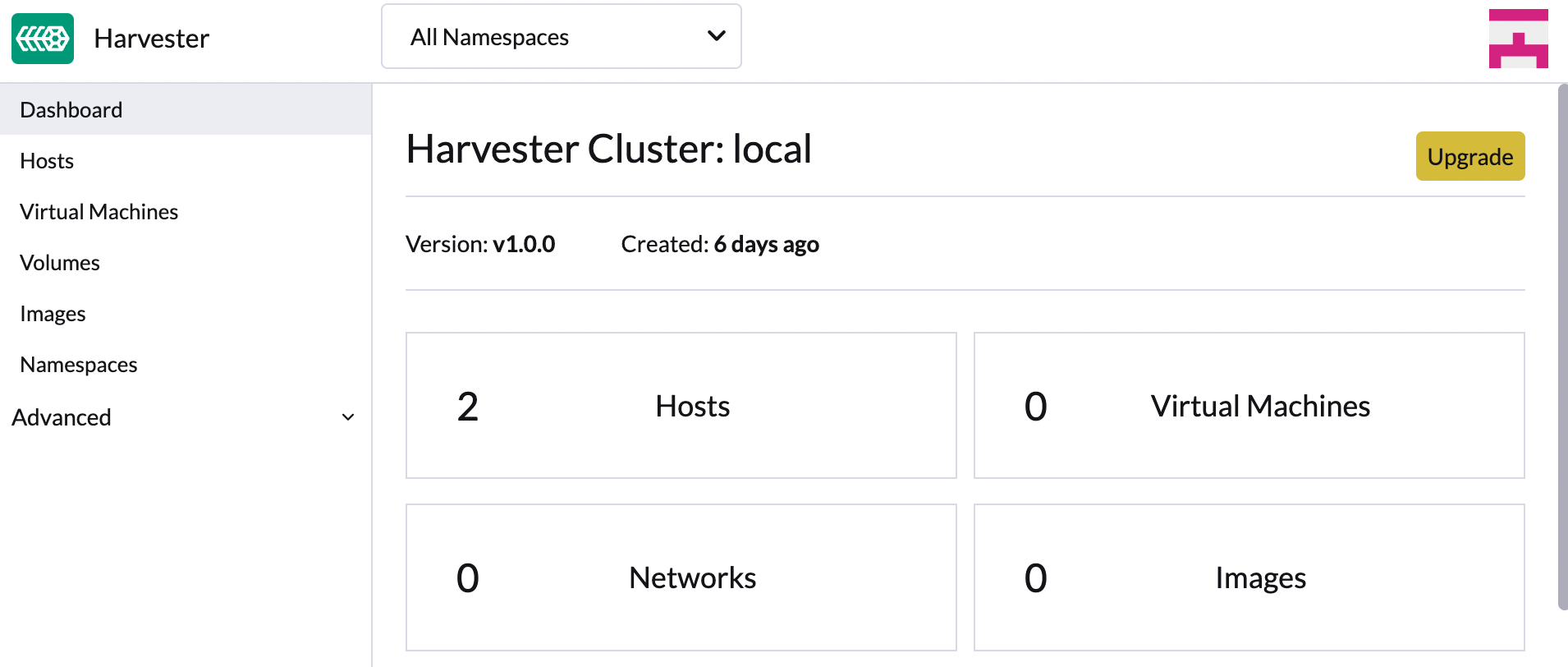

Harvester checks if there are new upgradable versions periodically. If there are new versions, an upgrade button shows up on the Dashboard page.
- If the cluster is in an air-gapped environment, please see Prepare an air-gapped upgrade section first. You can also speed up the ISO download by using the approach in that section.
Navigate to Harvester GUI and click the upgrade button on the Dashboard page.
Select a version to start upgrading.
Click the circle on the top to display the upgrade progress.

Prepare an air-gapped upgrade

Make sure to check Upgrade support matrix section first about upgradable versions.

Download a Harvester ISO file from release pages.
Save the ISO to a local HTTP server. Assume the file is hosted at http://10.10.0.1/harvester.iso.

Download the version file from release pages, for example, https://releases.rancher.com/harvester/{version}/version.yaml

Replace isoURL value in the version.yaml file:

  apiVersion: harvesterhci.io/v1beta1
  kind: Version
  metadata:
    name: v1.0.2
    namespace: harvester-system
  spec:
    isoChecksum: <SHA-512 checksum of the ISO>
    isoURL: http://10.10.0.1/harvester.iso  # change to local ISO URL
    releaseDate: '20220512'

Assume the file is hosted at http://10.10.0.1/version.yaml.

Become root and create a version:

  rancher@node1:~> sudo -i
  rancher@node1:~> kubectl create -f http://10.10.0.1/version.yaml

An upgrade button should show up on the Harvester GUI Dashboard page.

Free system partition space requirement

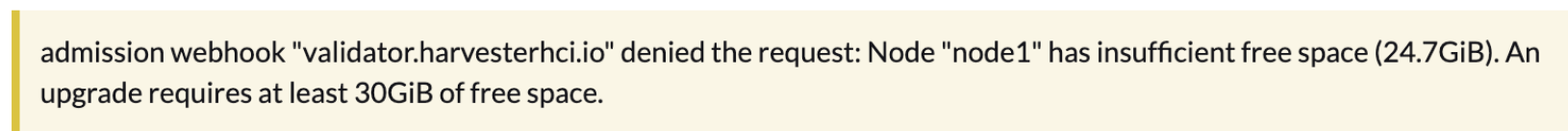

SUSE Virtualization checks the amount of free system partition space on each node when you select Upgrade. If any node does not meet the requirement, the upgrade is denied as follows:

If you want to try upgrading even if the free system partition space is insufficient on some nodes, you can update the harvesterhci.io/minFreeDiskSpaceGB annotation of the Version object.

apiVersion: harvesterhci.io/v1beta1
kind: Version
metadata:
  annotations:
    harvesterhci.io/minFreeDiskSpaceGB: "30" # the value is pre-defined and may be customized
  name: 1.2.0
  namespace: harvester-system
spec:
  isoChecksum: <SHA-512 checksum of the ISO>
  isoURL: http://192.168.0.181:8000/harvester-master-amd64.iso
  minUpgradableVersion: 1.1.2
  releaseDate: "20230609"

Setting a smaller value than the pre-defined value may cause the upgrade to fail and is not recommended in a production environment.

The following sections describe solutions for issues related to this requirement.

Free system partition space manually

SUSE Virtualization attempts to remove unnecessary container images after an upgrade is completed. However, this automatic image cleanup may not be performed for various reasons. You can use a script to manually remove images. For more information, see issue #6620.

Set up a private container registry and skip image preloading

The system partition might still lack free space even after you remove images. To address this, set up a private container registry for both current and new images, and configure the setting upgrade-config with following value:

{"imagePreloadOption":{"strategy":{"type":"skip"}}, "restoreVM": false}

SUSE Virtualization skips the upgrade image preloading process. When the deployments on the nodes are upgraded, the container runtime loads the images stored in the private container registry.

Do not rely on the public container registry. Note any potential internet service interruptions and how close you are to reaching your Docker Hub rate limit. Failure to download any of the required images may cause the upgrade to fail and may leave the cluster in a middle state.

Longhorn Manager Crashes Due to Backing Image Eviction

When upgrading to SUSE Virtualization v1.4.x, Longhorn Manager may crash if the EvictionRequested flag is set to true on any node or disk. This issue is caused by a race condition between the deletion of a disk in the backing image spec and the updating of its status.

To prevent the issue from occurring, ensure that the EvictionRequested flag is set to false before you start the upgrade process.

Re-enable RKE2 ingress-nginx admission webhooks (CVE-2025-1974)

If you disabled the RKE2 ingress-nginx admission webhooks to mitigate CVE-2025-1974, you must re-enable the webhook after upgrading to SUSE Virtualization v1.5.0 or later.

Verify that SUSE Virtualization is using nginx-ingress v1.12.1 or later.

$ kubectl -n kube-system get po -l"app.kubernetes.io/name=rke2-ingress-nginx" -ojsonpath='{.items[].spec.containers[].image}'
rancher/nginx-ingress-controller:v1.12.1-hardened1

Run kubectl -n kube-system edit helmchartconfig rke2-ingress-nginx to remove the following configurations from the HelmChartConfig resource.
- .spec.valuesContent.controller.admissionWebhooks.enabled: false
- .spec.valuesContent.controller.extraArgs.enable-annotation-validation: true

Verify that the new .spec.ValuesContent configuration is similar to the following example.

apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: rke2-ingress-nginx
  namespace: kube-system
spec:
  valuesContent: |-
    controller:
      admissionWebhooks:
        port: 8444
      extraArgs:
        default-ssl-certificate: cattle-system/tls-rancher-internal
      config:
        proxy-body-size: "0"
        proxy-request-buffering: "off"
      publishService:
        pathOverride: kube-system/ingress-expose

If the HelmChartConfig resource contains other custom ingress-nginx configuration, you must retain them when editing the resource.

Exit the kubectl edit command execution to save the configuration.

SUSE Virtualization automatically applies the change once the content is saved.

Verify that the rke2-ingress-nginx-admission webhook configuration is re-enabled.

$ kubectl get validatingwebhookconfiguration rke2-ingress-nginx-admission
NAME                           WEBHOOKS   AGE
rke2-ingress-nginx-admission   1          6s

Verify that the ingress-nginx pods are restarted successfully.

kubectl -n kube-system get po -lapp.kubernetes.io/instance=rke2-ingress-nginx
NAME                                  READY   STATUS    RESTARTS   AGE
rke2-ingress-nginx-controller-l2cxz   1/1     Running   0          94s
